Bimini Top Installation

Locate the label on the underside of the fabric. This is the back of the top. Slide the large bow through the sleeve on the back of the top being sure that the 2 pre-drilled holes near the curve of the upright portion of the bow are facing toward the front of the top.

Slide the medium bow through the sleeve in the forward section of the bimini top being sure that the 2 pre-drilled holes near the curve of the upright portion of the bow are facing toward the back of the top. Insert the last bow (there will be 2 for the 4 bow tops) in the sleeve(s) provided.

Attach 2 straps to the Large bow (back) and 2 straps to the Medium bow (front) by passing the end of the bows through the loops in the straps and securing each strap with 1 screw and 1 decorative washer per strap. These screws go into the pre-drilled holes on the upright portions of the bows.

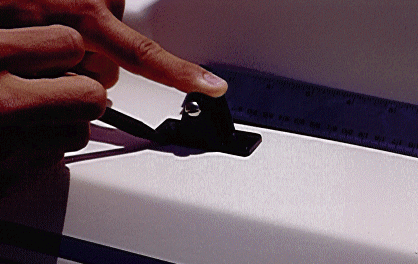

Place a mounting bracket at the appropriate location and outline it with a pencil. Also mark the boat through the screw holes in the bracket.

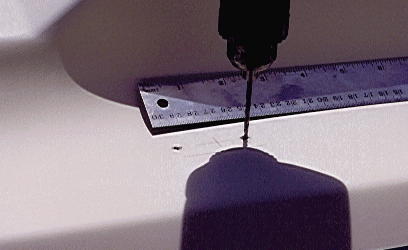

Using a drill with a bit smaller than the actual screws provided, drill the 2 holes needed to secure the bracket to your boat.

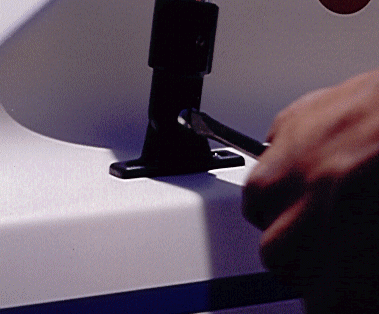

Place the bracket in place and secure firmly to your boat.
Repeat the process for the other side of the boat.

Attach the main bow to the brackets on your boat.

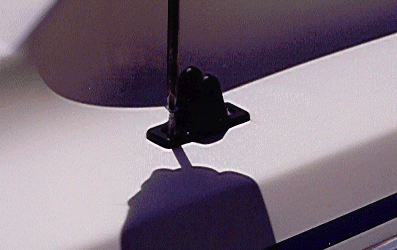

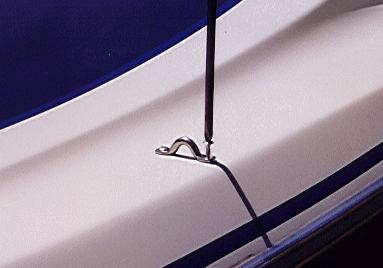

Position the forward attaching eyes to the boat and drill the holes needed to secure them to the boat. The forward strap eyes should mounted at a position that places the straps at a minimum 45 degree angle as they will take most of strain when you are "under way".

Set the back eyes for the rear straps. Adjust the straps so your top is riding near a horizontal position and you are done!
