Wooden Tank Liner Installation

Follow an existing wooden tank project from wall preparation and bead track to liner fitting, filling and covering.

View across the filled wooden tank

About This Installation

There are numerous ways to create a new tank or fix existing water tanks using vinyl tank liners. This example shows the construction of a wooden tank which holds water using a beaded tank liner made from potable white vinyl. You may notice that the long walls are reinforced against the outward water pressure by pieces of steel conduit running through the middle of two PVC pipes in the tank. This provides structural reinforcement and prevents the water and steel from touching.

Select a photograph to enlarge it and browse the gallery.

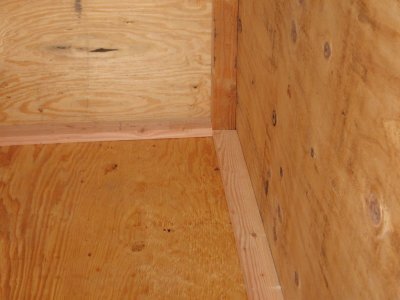

Wooden tank walls and floor before lining
Wooden tank walls and floor before lining

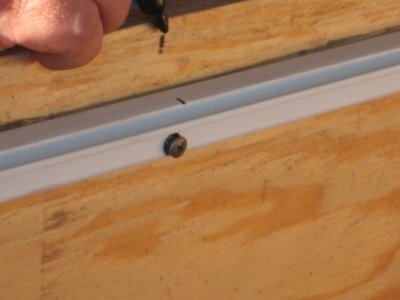

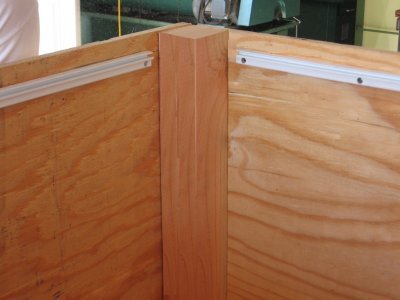

Bead track mounted along the wooden tank rim
Bead track mounted along the wooden tank rim
Fastener through the bead track
Fastener through the bead track

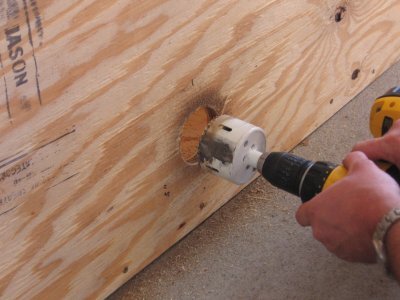

Drilling an opening through the wooden tank wall
Drilling an opening through the wooden tank wall

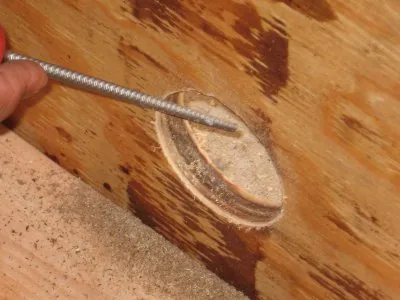

Filing the edge of the wall opening
Filing the edge of the wall opening

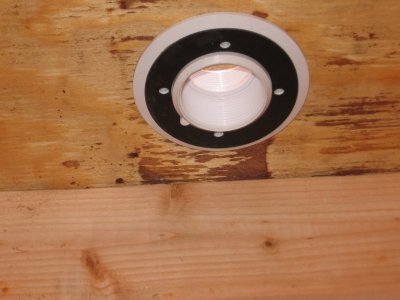

Bulkhead fitting viewed from inside the tank
Bulkhead fitting viewed from inside the tank

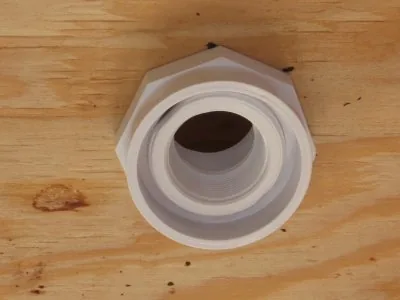

Bulkhead fitting viewed from outside the tank
Bulkhead fitting viewed from outside the tank

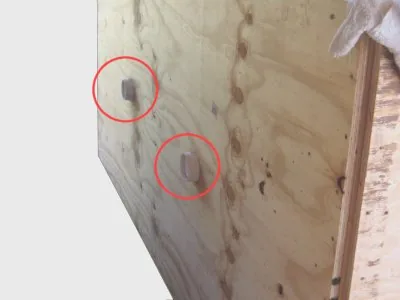

Marked fitting locations on the wooden wall
Marked fitting locations on the wooden wall

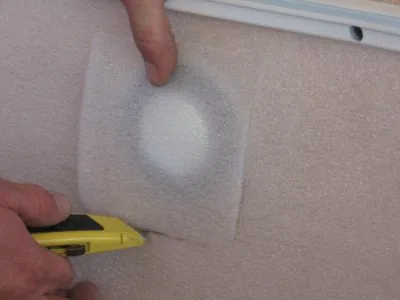

Trimming wall padding around the fitting
Trimming wall padding around the fitting

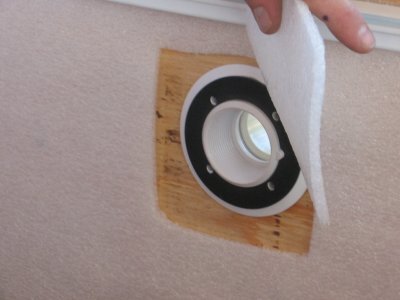

Wall padding cut to expose the fitting
Wall padding cut to expose the fitting
Positioning padding along the bottom of the wall
Positioning padding along the bottom of the wall

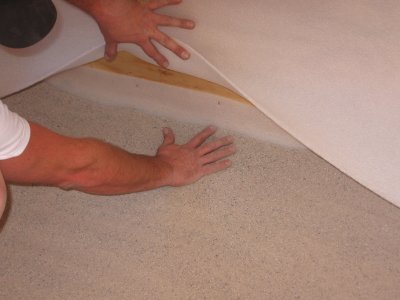

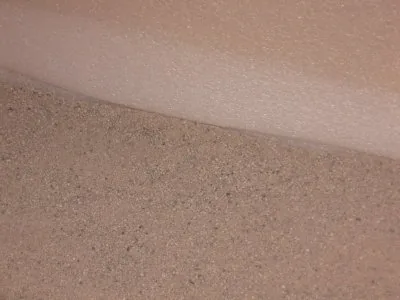

Prepared tank floor beside the padded wall
Prepared tank floor beside the padded wall

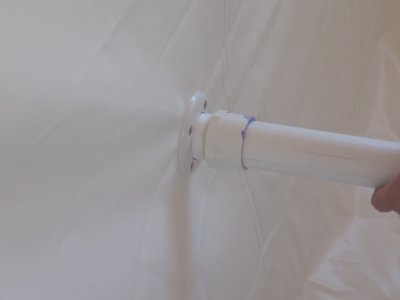

Support sleeve passing through the padded tank wall
Support sleeve passing through the padded tank wall

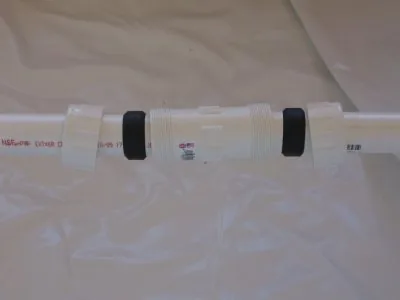

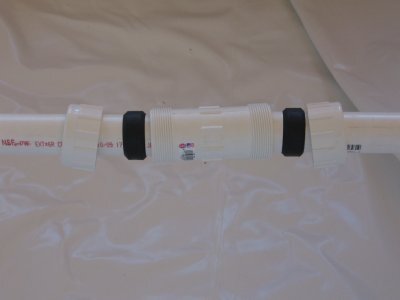

Couplers and straps around the support sleeve
Couplers and straps around the support sleeve

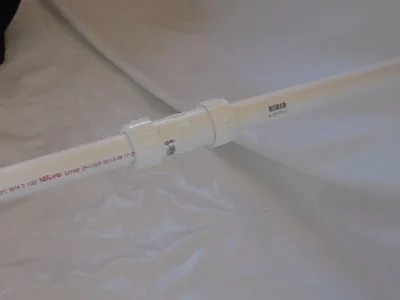

Joined support sleeve spanning the tank
Joined support sleeve spanning the tank

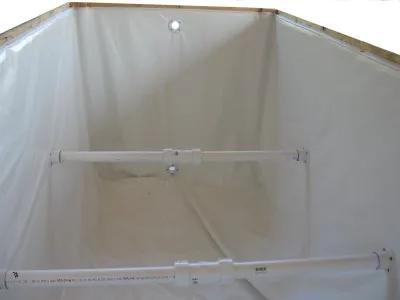

Prepared tank with wall padding and cross-tank support
Prepared tank with wall padding and cross-tank support
Unpacking the white vinyl liner
Unpacking the white vinyl liner

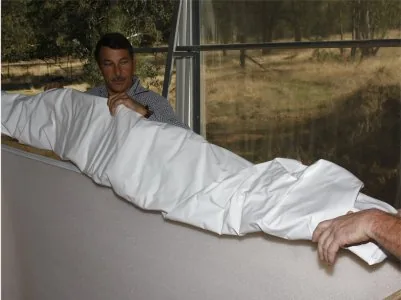

Unfolding the liner over the tank rim
Unfolding the liner over the tank rim

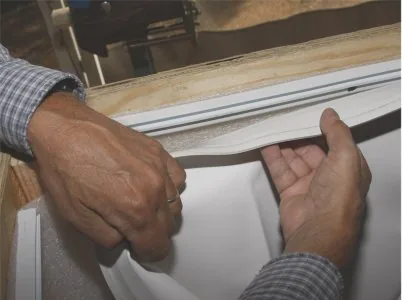

Liner bead held beside the track
Liner bead held beside the track

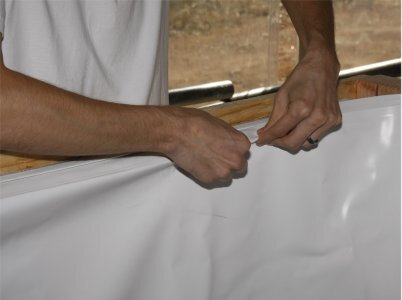

Placing the liner bead into the track
Placing the liner bead into the track

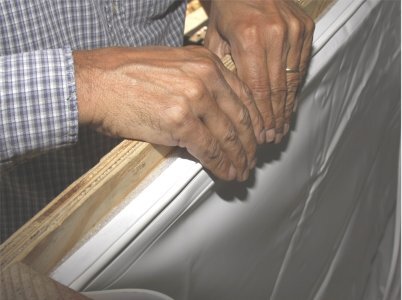

Pressing T-Lock above the liner bead
Pressing T-Lock above the liner bead

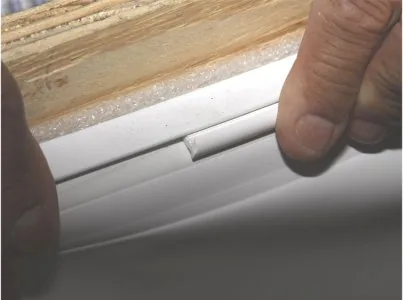

T-Lock seated above the bead
T-Lock seated above the bead

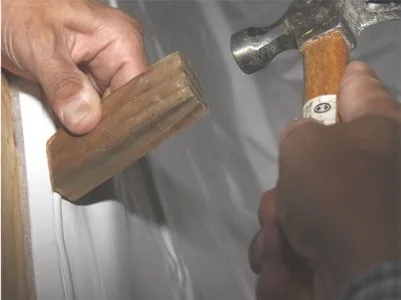

Tapping T-Lock into the track
Tapping T-Lock into the track

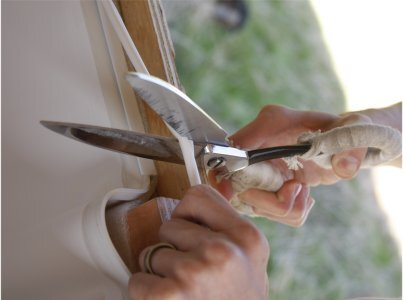

Trimming the end of the T-Lock strip
Trimming the end of the T-Lock strip
Standing in socks on the liner floor
Standing in socks on the liner floor

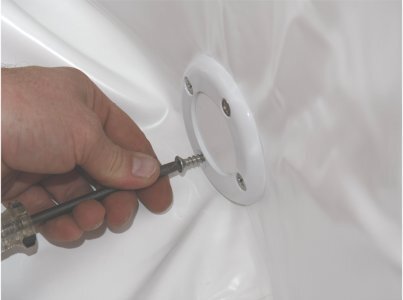

Fastening the fitting faceplate over the liner
Fastening the fitting faceplate over the liner

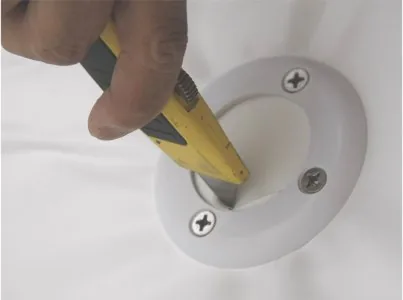

Cutting the liner inside the fitted faceplate
Cutting the liner inside the fitted faceplate

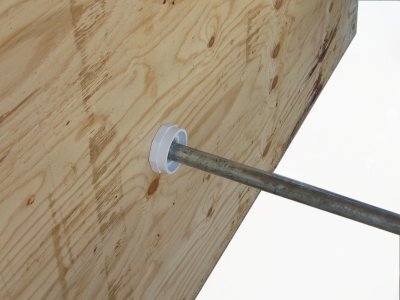

Support conduit passing through the wooden wall
Support conduit passing through the wooden wall

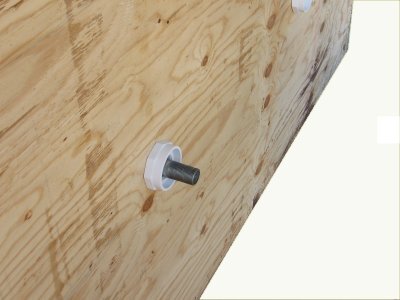

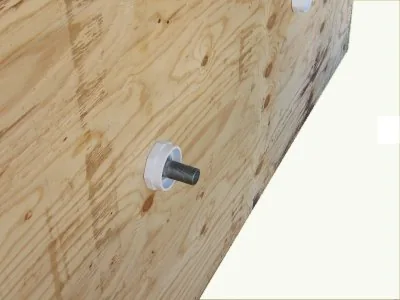

Support conduit end outside the tank
Support conduit end outside the tank

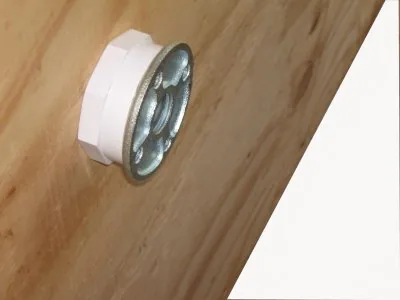

Exterior flange around the support opening
Exterior flange around the support opening

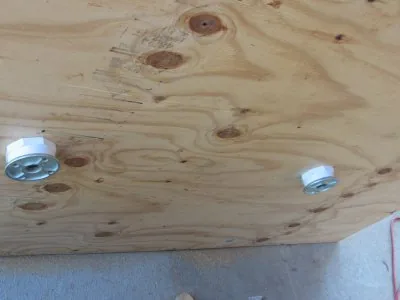

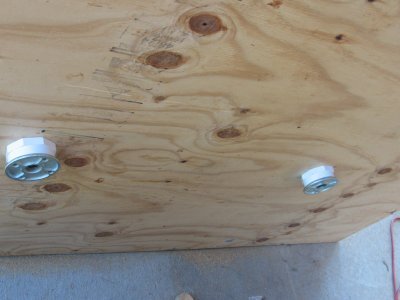

Two exterior support flanges
Two exterior support flanges

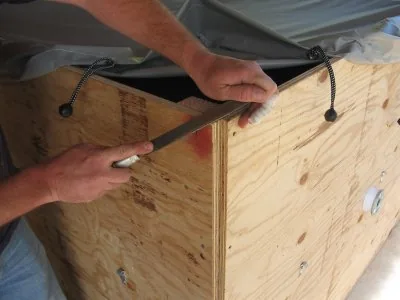

Filing the exposed end of the support
Filing the exposed end of the support
Water in the lined wooden tank
Water in the lined wooden tank

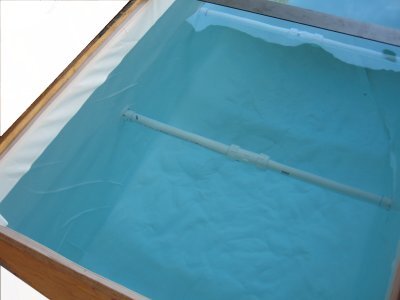

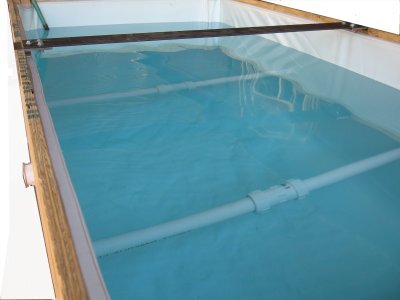

Filled tank with supports spanning its width
Filled tank with supports spanning its width

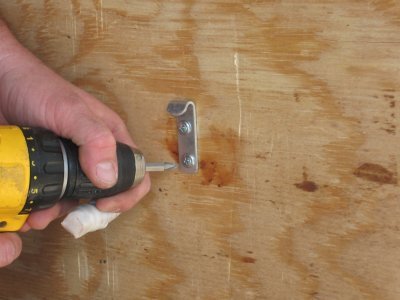

Fastening a cover hook to the tank exterior
Fastening a cover hook to the tank exterior

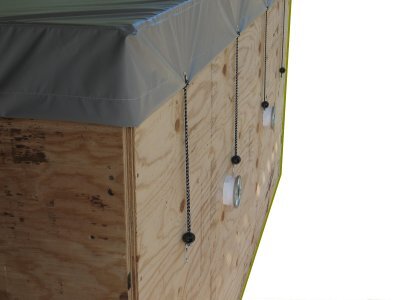

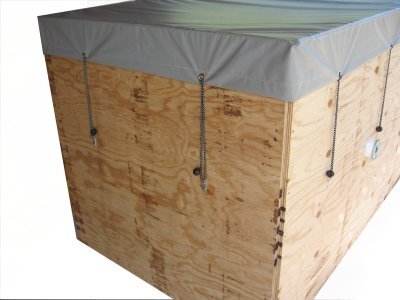

Cover secured along the long wall
Cover secured along the long wall

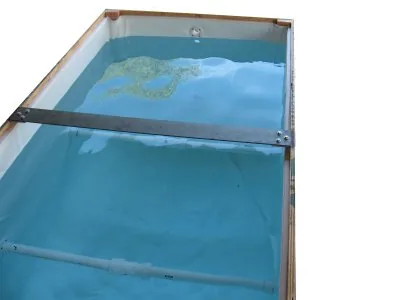

View across the filled wooden tank
View across the filled wooden tank
Covered wooden tank
Covered wooden tank

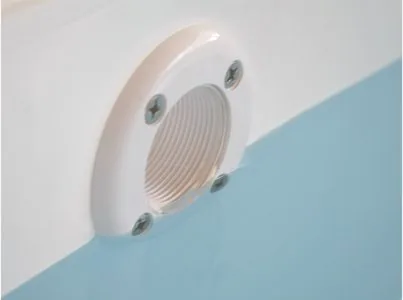

Fitting faceplate inside the filled tank
Fitting faceplate inside the filled tank
