Side Mount & Top Mount Liner Track

Replace the receiver that holds your liner bead. Compare the mounting profiles, then select the sections you need.

Select Liner Track Check Track Fit

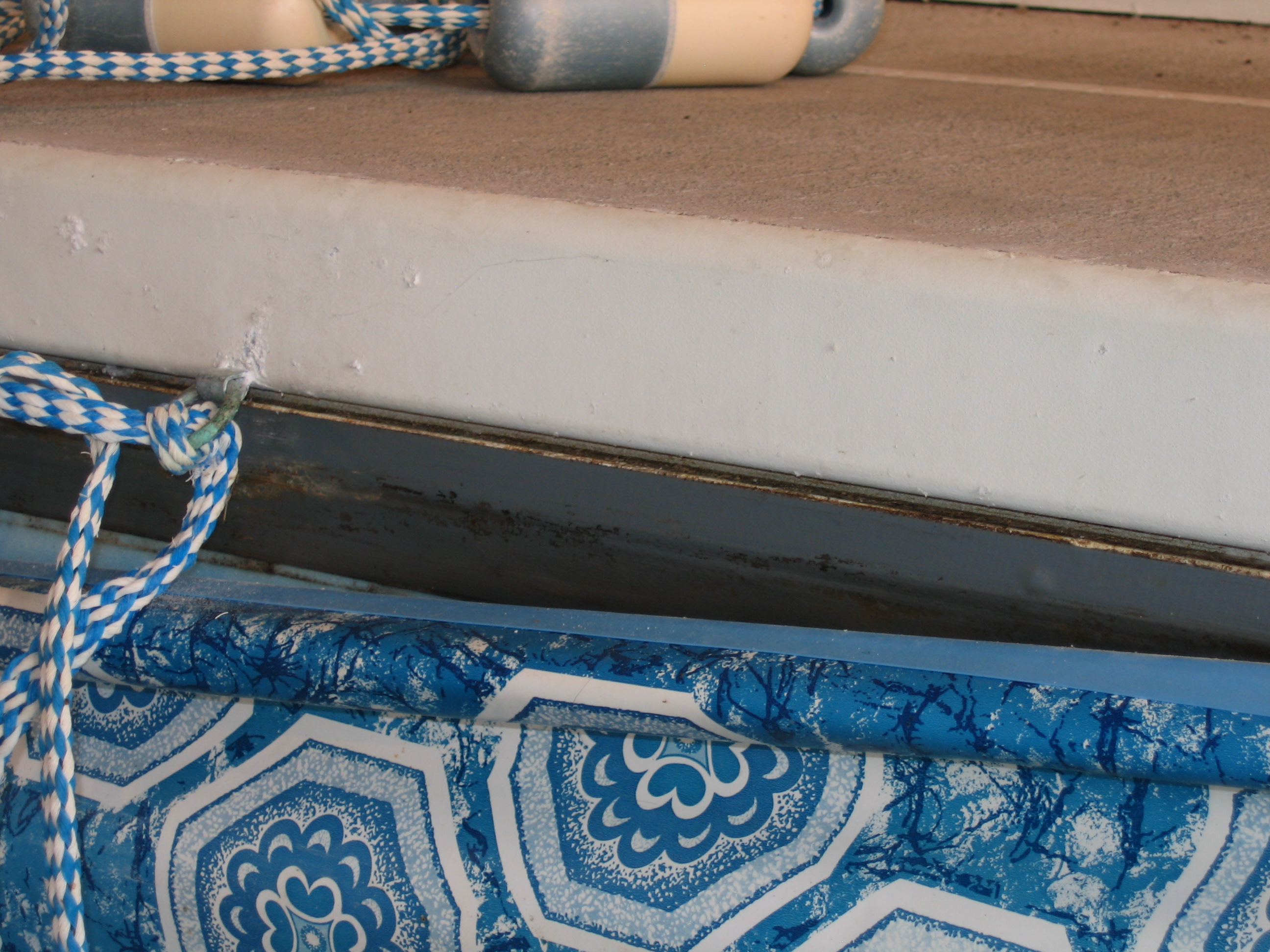

Beaded vinyl liner seated along the top of a pool wall

Match your mounting surface and liner bead

Compare the mounting-face width, channel opening, and bead shape with your existing track. The mounting profile alone does not confirm fit.

Side Mount Track

Side Mount Track mounting face and bead channel The vertical mounting face is below the bead receiver. Compare the shape and measure your mounting face and channel opening; this photo is not a dimensioned template. Bead channelMounting face
Fastens to the vertical inside face.

Check that the inside face is accessible and provides a sound fastening surface.

Top Mount Track

Top Mount Track mounting face and bead channel The mounting face rests on the horizontal surface, beside the bead receiver. Compare the shape and measure your mounting face and channel opening; this photo is not a dimensioned template. Mounting faceBead channel
Fastens to the horizontal top surface.

Check access to the top surface and clearance beneath any coping or deck edge.

Before replacing your track

This receiver is for a compatible beaded liner. It is not an overlap or J-hook attachment. Compare the Ameri-Brand liner bead diagram with your liner.

Have your installer confirm the mounting surface, fasteners, and access before removing existing track. Do not attach replacement track to a loose or damaged surface.

Confirm mounting hardware requirements with us before ordering. For an unfamiliar profile, send close-up photos of the bead, receiver, and mounting surface.

If the receiver is sound and only the seated bead needs help staying in place, review T-Lock bead lock. T-Lock is a retaining strip; it does not replace damaged track.

Liner track lengths & prices

Sold in 8-ft. sections.

Shipping to the lower 48 states: $18 for the first section, plus $3 for each additional section.
