Ameri-Dome Lights Installation
1. Determine where you want to Install your Ameri-Dome Lights. |
|

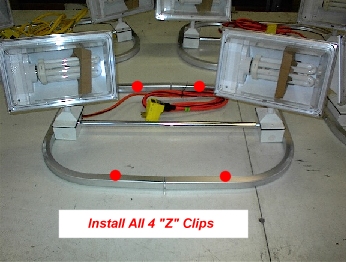

2. Locate the 4 "Z" Clips and attach them to Frame with the included screws. There are 4 "Z" clips per light to keep the lights properly secured (and grounded) to the deck and to prevent tipping of the units. |
 |
3. Anchor Installation for Concrete Decks: Step A: Using a rotary hammer drill with a 1/2 inch masonry bit, drill 2 inches into the deck. Step B: Put the "redhead" insert into the hole. Use a hammer and a center punch and set the "redhead" into the deck. (Just like you did when you installed the dome.) Step C: Place the washer on the hex bolt provided and push the hex bolt through the "Z" clip and thread into the insert that's in the concrete. Tighten with a wrench. It's important to secure the lights to the deck to prevent electrical shock. Use all 4 "Z" clips included.
|
|
4. DO NOT disconnect GFI unit from the light Cord. Also, keep excess Power Cord outside of the dome and away from the pool area. |
 |
5. IMPORTANT: Use a medium sized phillips screwdriver to remove the 4 screws holding the clear lexan lens on EACH light. Carefully remove the protective packing material surrounding the light bulbs and reinstall the face plates. |
 |
Please Call us if you have any questions at 1-800-982-6966
